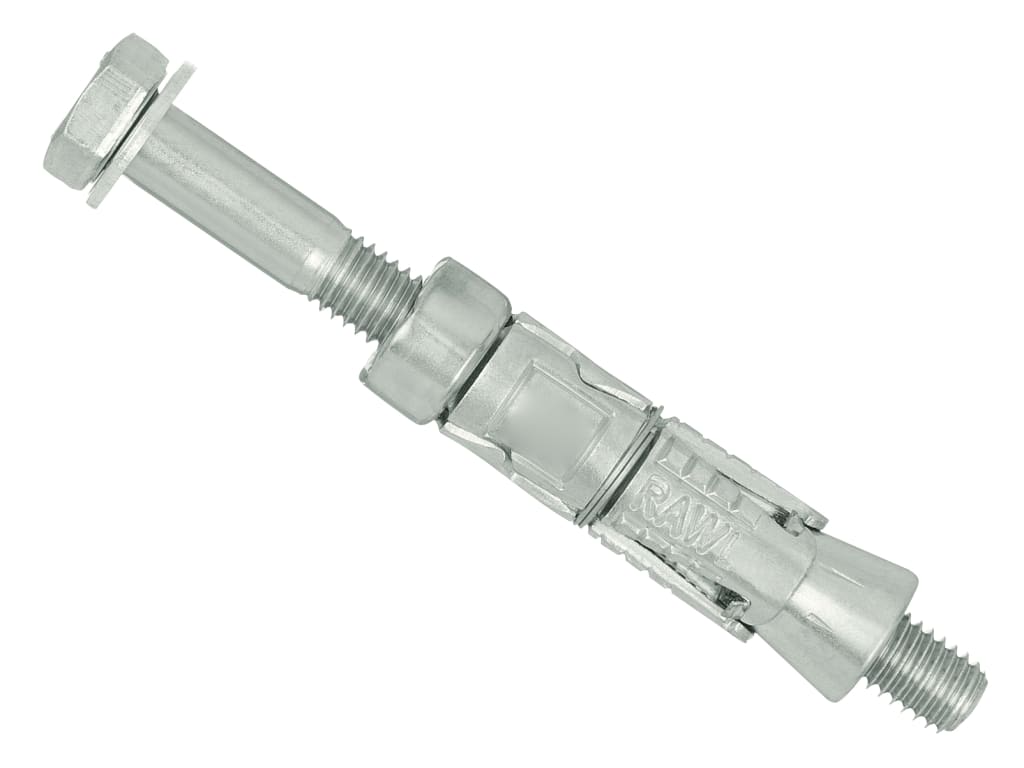

    Rawlbolt® Loose Bolt M10/25L (Bag 5)

    Rawlbolt® Loose Bolt M10/25L (Bag 5)

    Prices may vary between branches.

    £9.09 GBP
    £9.09 GBP
    Sale Sold out
    VAT included.

    These Rawlplug Rawlbolt® Loose Bolts have the following specification:

    Anchor
    Diameter: 10mm
    External Diameter: 16mm
    Length: 90mm

    Fixture
    Max. Thickness: 25mm
    Hole Diameter: 11mm

    Hole Diameter in Substrate: 16mm
    Installation Torque: 27
    Wrench Size: 17
    Min. Hole Depth in Substrate: 65mm
    Min. Installation Depth: 60mm
    Min. Substrate Thickness: 100mm
    Min. Spacing: 50mm
    Min. Edge Distance: 75mm

    Pack Quantity: Bag of 5
