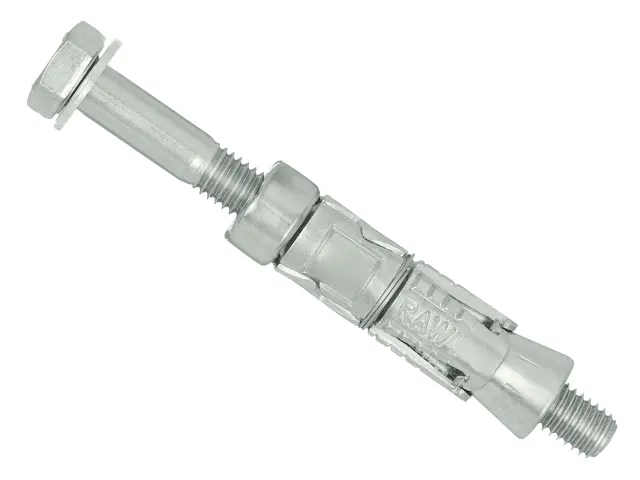

Rawlbolt® Loose Bolt M10/10L (Bag 5)

Rawlbolt® Loose Bolt M10/10L (Bag 5)

Prices may vary between branches.

£8.19 GBP
£8.19 GBP
Sale Sold out
VAT included.

These Rawlplug Rawlbolt® Loose Bolts have the following specification:

Anchor
Diameter: 10mm
External Diameter: 16mm
Length:75mm

Fixture
Max. Thickness: 10mm
Hole Diameter: 11mm

Hole Diameter in Substrate: 16mm

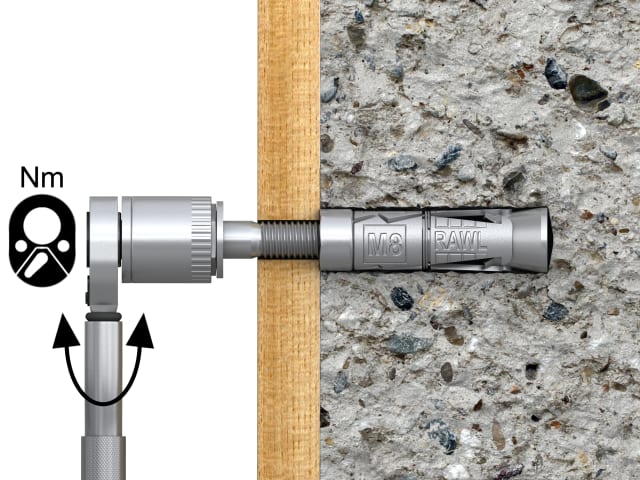

Installation Torque: 27
Wrench Size: 17
Min. Hole Depth in Substrate: 65mm
Min. Installation Depth: 60mm
Min. Substrate Thickness: 100mm
Min. Spacing: 50mm
Min. Edge Distance: 75mm

Pack Quantity: Bag of 5
