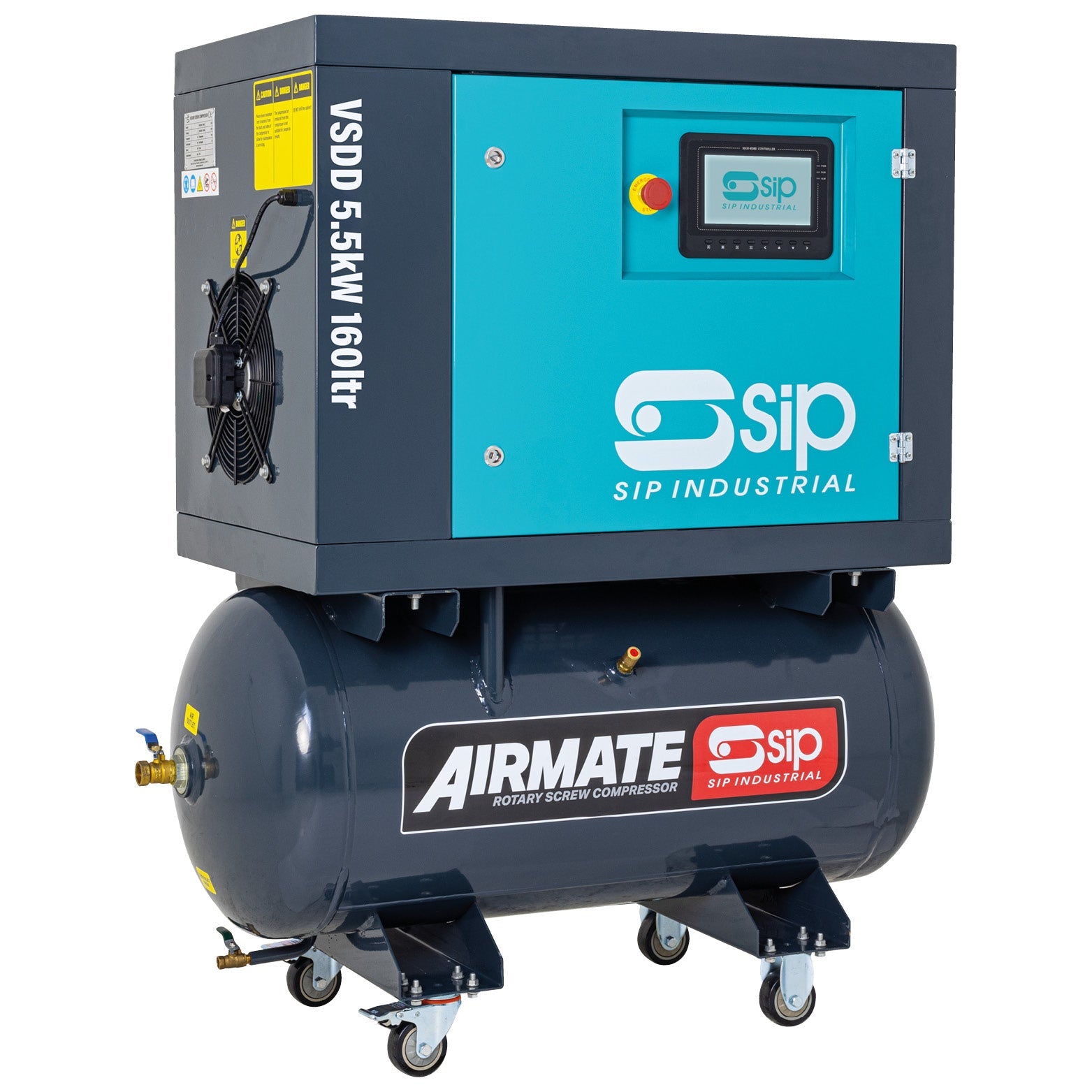

SIP VSDD 5.5kW 8bar 160ltr 230v Rotary Screw Compressor

SIP VSDD 5.5kW 8bar 160ltr 230v Rotary Screw Compressor

Prices may vary between branches.

Regular price £3,479.99
Regular price Sale price £3,479.99
Sale Sold out
VAT included.

The SIP VSDD 5.5kW 8bar 160ltr 230v Rotary Screw Compressor is a variable speed, direct drive rotary screw compressor. This 4th generation compressor is designed for continuous use applications or where multiple operators require compressed air at one time.

With a motor output of 5.5kW, this compressor can meet high-demand air requirements and optimise energy usage. Fitted with a 160ltr receiver tank.

Applications & uses: Ideal for small to medium workshops. Suitable for automotive settings, plus industrial, engineering and agricultural environments.

• Direct drive transmission for improved power transfer: Precision-engineered twin parallel rotary screws deliver an efficient positive drive transmission. This negates slippage for greater power transfer and machine reliability compared to belt-driven compressors. It also reduces machine maintenance, component stress and lowers power consumption and energy costs.
• Variable speed 5.5kW motor delivers even power distribution: The inverter motor control enables automated soft-start and slope-down functionality. This ensures even torque distribution when powering up and controlled load descent once the receiver has reached the required air volume. The on-demand air production created adjusts to vary the amount of air delivered for greater versatility. These automated functions help to reduce machine wear and support long life use. Fitted with an IE4 motor for greater efficiency and lower energy costs.
• Silenced cabinet ensures reduced noise operation: Heavy-duty silenced cabinet minimises vibration and operates at reduced noise levels.
• 160ltr air receiver supports high air consumption: Designed to safely store high volume compressed air, helping to ensure a stable flow and meet pressure peaks when in operation.
• Real-time diagnostic colour display: An intuitive colour touchscreen display provides real-time diagnostic information on the status of the compressor. Includes operation and load status, receiver pressure, motor voltage and internal temperature.
• Easy access cabinet for maintenance and service: All critical machine components are fully accessible through a single access cabinet panel, helping to reduce air production downtime. A service should be performed annually or after every 2000 loading hours. The compressor should perform a minimum of 1000 loading hours annually.
• Wheel-mounted all-in-one design: Wheel-mounted for added mobility. Also suitable for static installation. The compact all-in-one design ensures a smaller footprint which helps minimise lost work area space.
• SIP 2-Year Standard Silver Warranty - ITEM NO. 08257
Input Supply 230v (64a)
Rated Input: 7kW
Motor Power: 5.5kW (7hp)
IE4 Motor: Yes
Max. Pressure: 116psi (8bar)
Free Air Delivery (FAD): 25CFM (720ltr/min)
Receiver Size: 160ltr
Cooling Type: Fan Cooled
Transmission Type: Direct Drive
Start-Up Mode: Inverter Soft Start
Refrigerated Dryer: N/A
Outlet Connector: 3/4" BSPP
Noise Level: 65dB(A)
