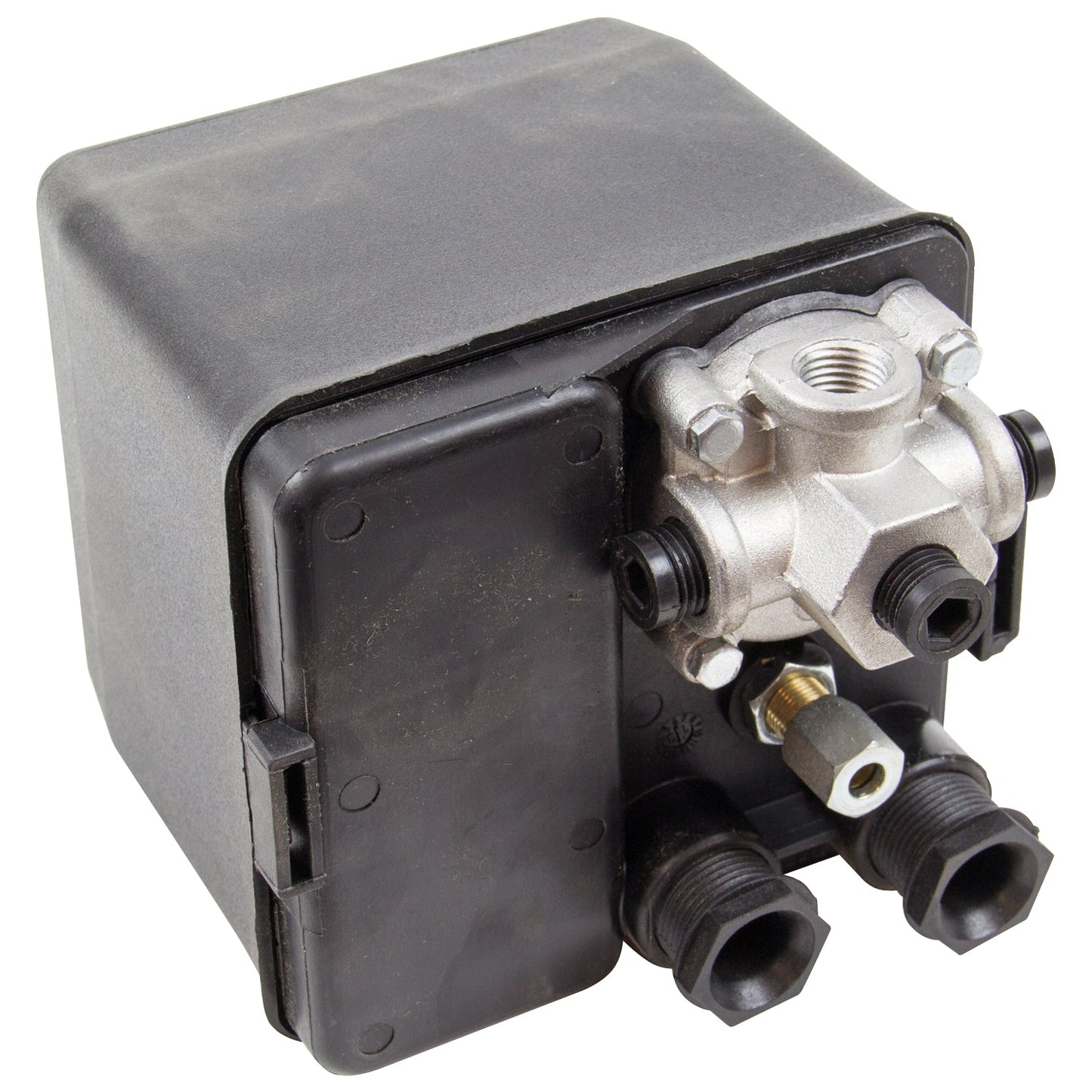

SIP TELE10 4-Way Pressure Switch

The SIP TELE10 9A - 14A 4-Way Pressure Switch is an important component for any compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This pressure switch is easy-to-install and features an integrated motor starter.

• TELE10 4-way pressure switch with integrated motor starter
• Easily adjustable cut-off pressure via built-in switch
• Designed to start and stop electric compressor motors
• Manufactured for long-lasting and reliable use
• Integrated bleed facility with 6mm pipe entry - ITEM NO. 06568
Switch Type: TELE10 4-Way
Voltage / Current: 400v / 20A
Overload: 9A - 14A
Inlet Connection Size: 1/4" BSP
Inlet Connection Type Bottom Entry
Side Port Size: 3x 1/4" BSP
Switch Type: Pull
Phase Type: 3-phase
No. of Poles: 3 poles
