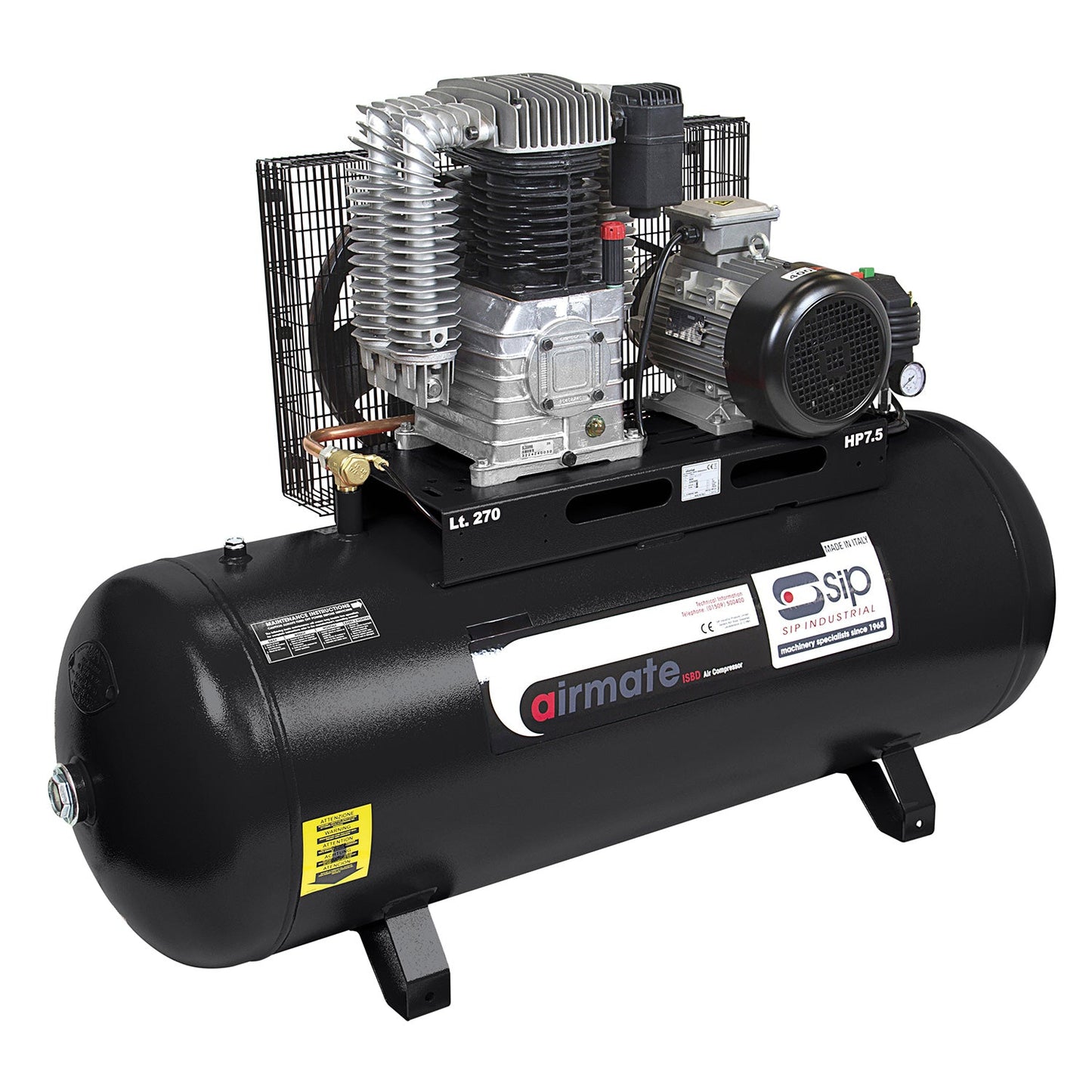

SIP ISBD10/270 270ltr Industrial Electric Compressor

The SIP ISBD10/270 270ltr Industrial Electric Compressor is a powerful belt-driven workhorse compressor built for hard-wearing durability and designed for consistently high performance, plus superior compressed air production perfect for a large range of demanding industrial applications.

Large interstage coolers provide high-quality, cooler air with reduced moisture and better pump temperature control. Meanwhile, an industrial-grade 3-phase motor ensures heavy-duty operation at all times, as do the long-stroke cast iron cylinders.

Each ISBD10/270 Industrial Electric Compressor comes with an SIP 10-Year Anti-Corrosion Receiver Warranty as standard for added peace-of-mind.

• Oil-lubricated belt-driven compressor with 400v 3-PHASE motor
• Heavy-duty pump ideal for prolonged and demanding industrial applications
• Large interstage coolers for high-quality, cooler air, reduced moisture and pump temperature control
• Long-stroke cast iron cylinders for slower running and increased pump life
• Robust valve plate with individual valves for efficient performance
• Supplied with heavy-duty anti-vibration mounts
• SIP 10-Year Anti-Corrosion Receiver Warranty
• SIP 2-Year Standard Silver Warranty
• Manufactured in Italy - ITEM NO. 06295
Input Supply: 400v (20A) 3-PHASE
Motor Power: 10hp (7.5kW)
Receiver Size: 270ltr
Piston Displacement: 38.00CFM (1076ltr/min)
Free Air Delivery (FAD): 25.00CFM (708ltr/min)
Max. Air Pressure: 160psi (11bar)
Working Speed: 1000rpm
No. of Cylinders: 2 cylinders
No. of Stages: 2 stages
