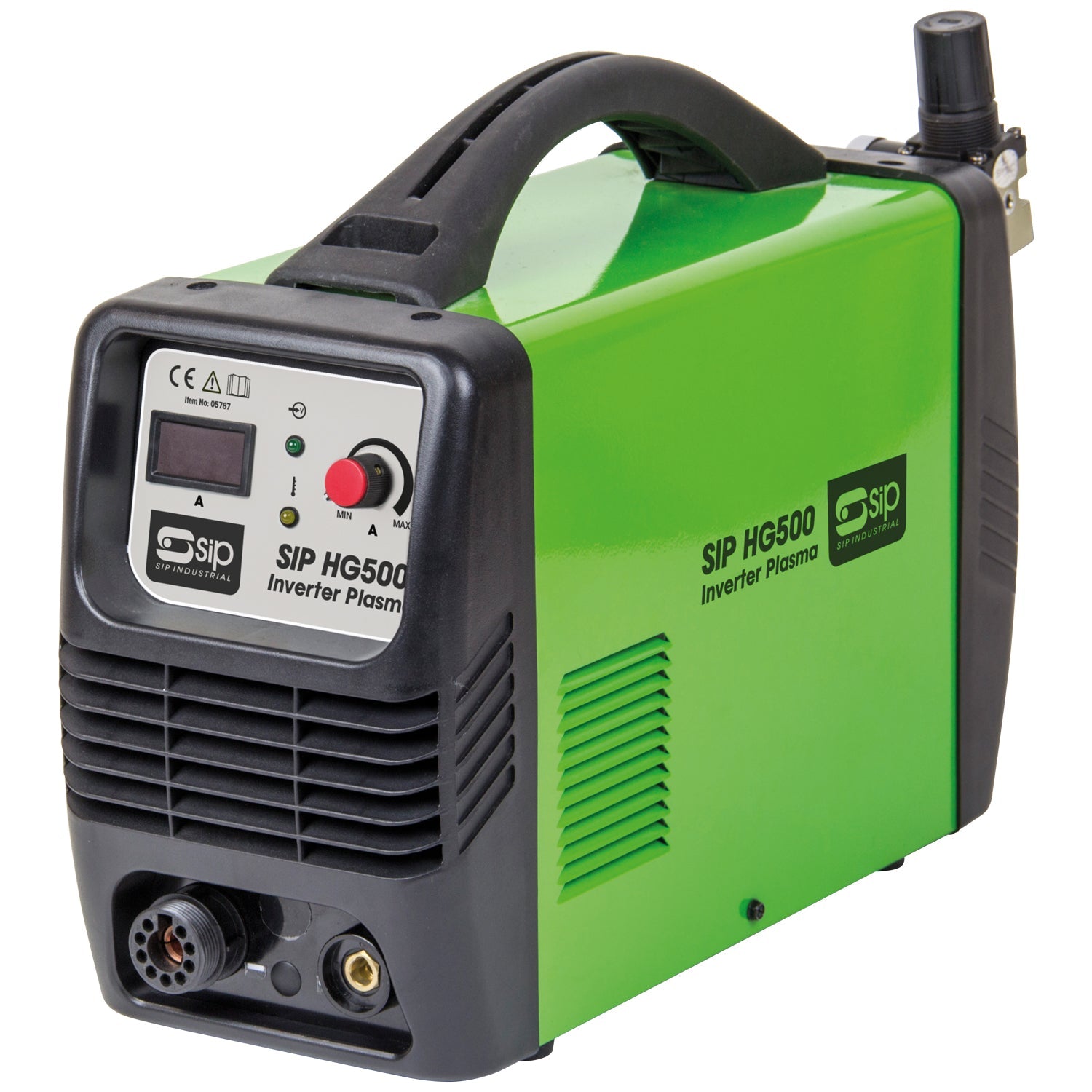

SIP HG500 Inverter Plasma Cutter
SIP HG500 Inverter Plasma Cutter
Prices may vary between branches.
The SIP HG500 Inverter Plasma Cutter provides consistently high-quality and accurate cutting of a range of varied conductive materials, in tandem with infinitely variable power output, including mild steel, stainless steel, copper, bronze and aluminium.
• 15A to 50A output current; 50A @ 60% duty cycle
• High duty cycle for longer cutting times than others
• 12mm quality cut and 15mm severance cutting capacity
• Parts-in-place safety circuit for added peace-of-mind
• Infinitely variable power output for high versatility
• Compact one-person lift design for easy, safe portability
• Built with an integrated air pressure sensor switch
• Perfect for sheet metal and automotive applications
• SIP 2-Year Standard Silver Warranty - ITEM NO. 05787
Input Supply: 230v (16A)
Output Current: 15A - 50A
Output Voltage: 86v - 100v
Max. Air Pressure: 43psi (3bar) - 87psi (6bar)
Working Air Flow: 200ltr/min
Duty Cycle: 50A @ 60%
Max. Cutting Capacity: 12mm
Max. Severing Capacity: 15mm
Protection Level: IP21S
Insulation Class: Class F
