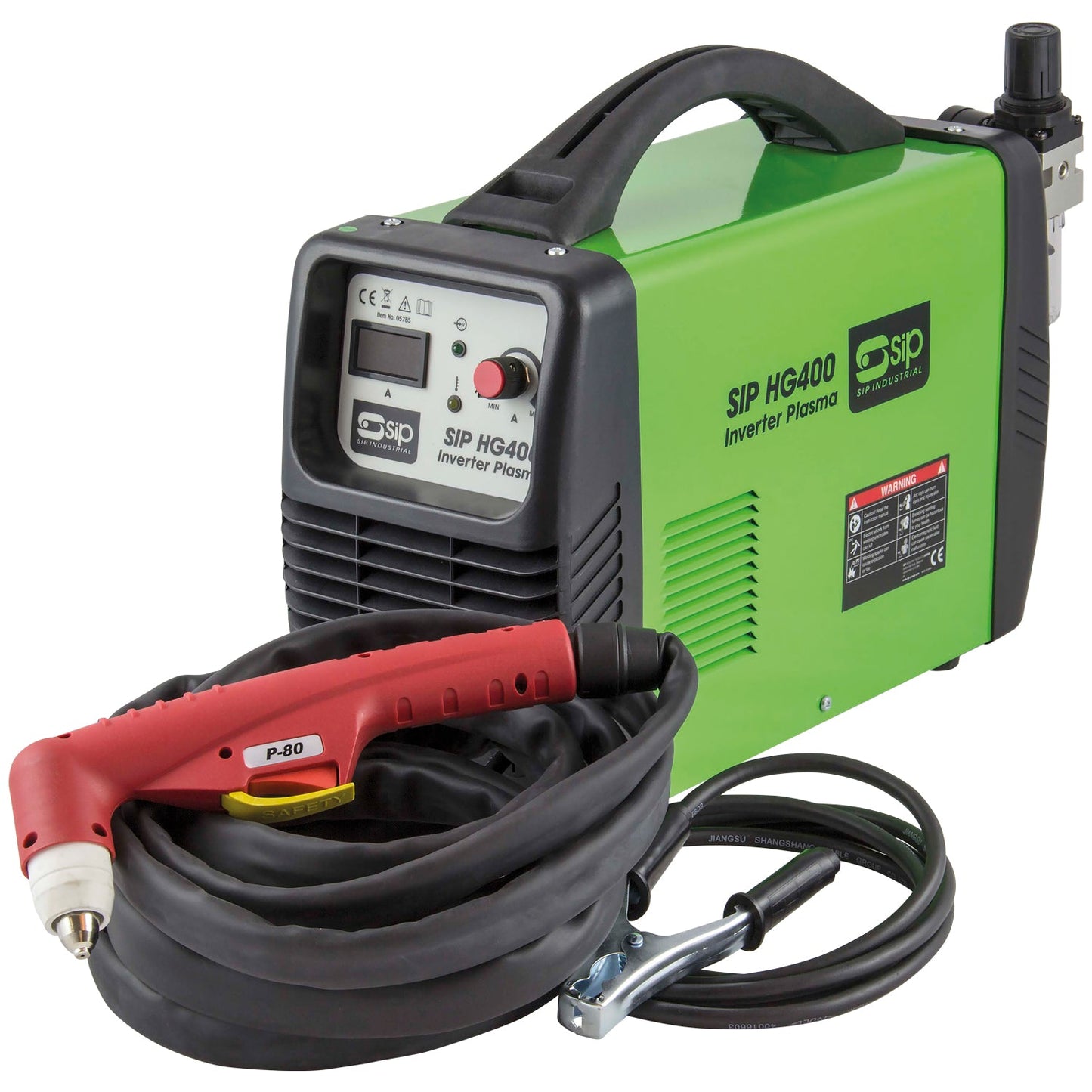

SIP HG400 Inverter Plasma Cutter

The SIP HG400 Inverter Plasma Cutter provides consistently high-quality and accurate cutting of a range of varied conductive materials, in tandem with infinitely variable power output, including mild steel, stainless steel, copper, bronze and aluminium.

• 15A to 40A output current; 40A @ 60% duty cycle
• High duty cycle for longer cutting times than others
• 10mm quality cut and 12mm severance cutting capacity
• Parts-in-place safety circuit for added peace-of-mind
• Infinitely variable power output for high versatility
• Compact one-person lift design for easy, safe portability
• Built with an integrated air pressure sensor switch
• Perfect for sheet metal and automotive applications
• SIP 2-Year Standard Silver Warranty - ITEM NO. 05785
Input Supply: 230v (16A)
Output Current: 15A - 40A
Output Voltage: 86v - 96v
Max. Air Pressure: 43psi (3bar) - 87psi (6bar)
Working Air Flow: 200ltr/min
Duty Cycle: 40A @ 60%
Max. Cutting Capacity: 10mm
Max. Severing Capacity: 12mm
Protection Level: IP21S
Insulation Class: Class F
