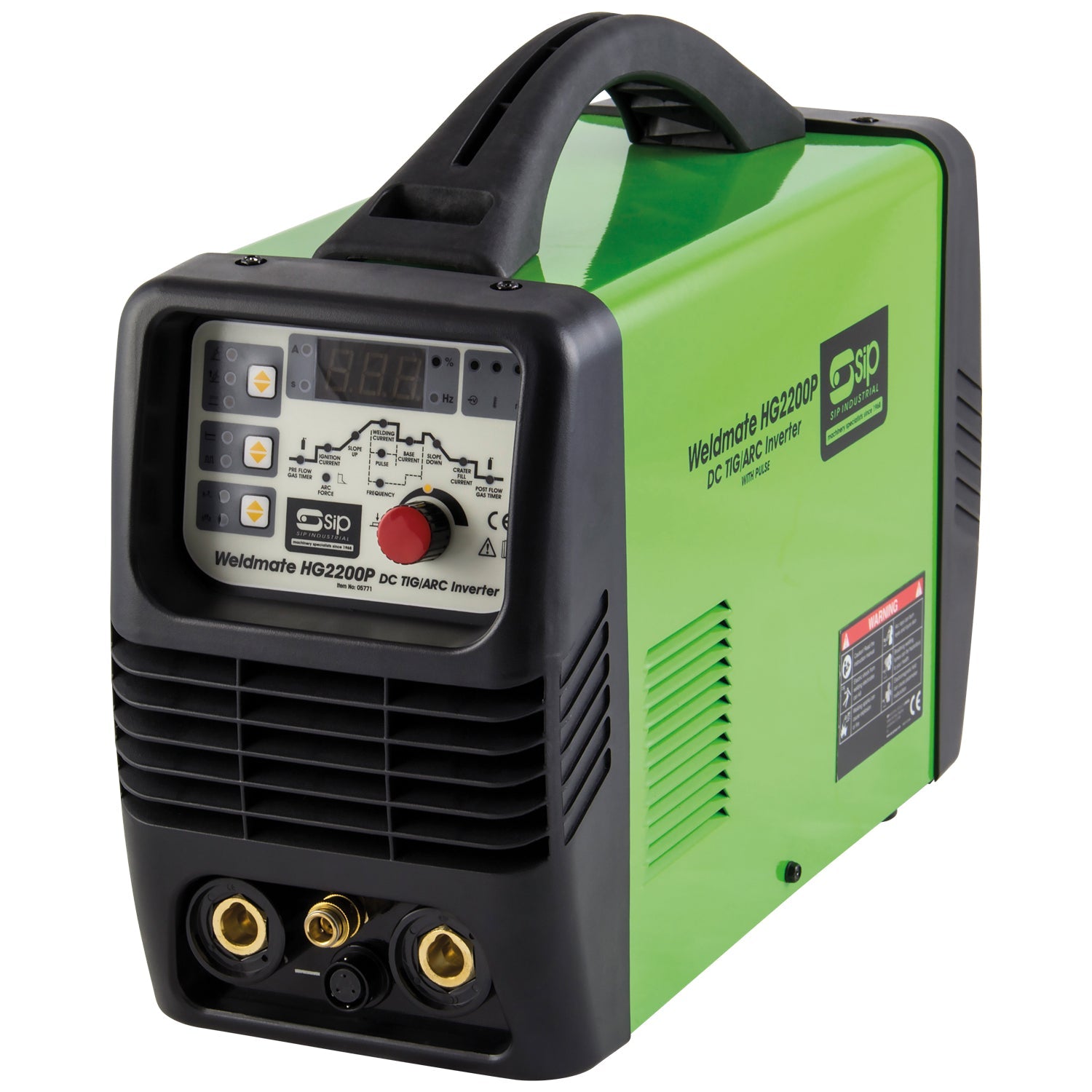

SIP HG2200P TIG/ARC Inverter Welder

The SIP HG2200P TIG/ARC Inverter Welder is a professional-grade dual-purpose inverter designed with a TIG Pulse facility which provides easier precision welding across a variety of applications and a 9-stage parameter adjustment program.

• Ø 1.6mm to Ø 4mm electrode diameter
• DC TIG/ARC output current and high duty cycles
• Designed with the latest IGBT inverter technology platform
• Multi-functional; HF TIG, Lift ARC & TIG, and MMA/ARC processes
• Integrated TIG Pulse facility provides considerably easier precision welds
• 9-stage parameter adjustment including slope-up, slope-down, pre/post flow, crater fill and more to customise the set-up dependent on task requirements
• Lightweight and compact design for easy portability in all applications
• Low current output which is ideal for welding thinner materials
• SIP 2-Year Standard Silver Warranty - ITEM NO. 05771
Input Supply: 230v (16A)
Output Current: 5A - 200A (TIG) / 20A - 200A (ARC)
Output Voltage: 10.2v - 18v (TIG) / 20.8v - 28v (ARC)
Duty Cycle: 200A @ 60% (TIG) / 200A @ 60% (ARC)
Electrode Diameter: Ø 1.6mm - 4mm
Protection Level: IP21S
Insulation Class: Class H
