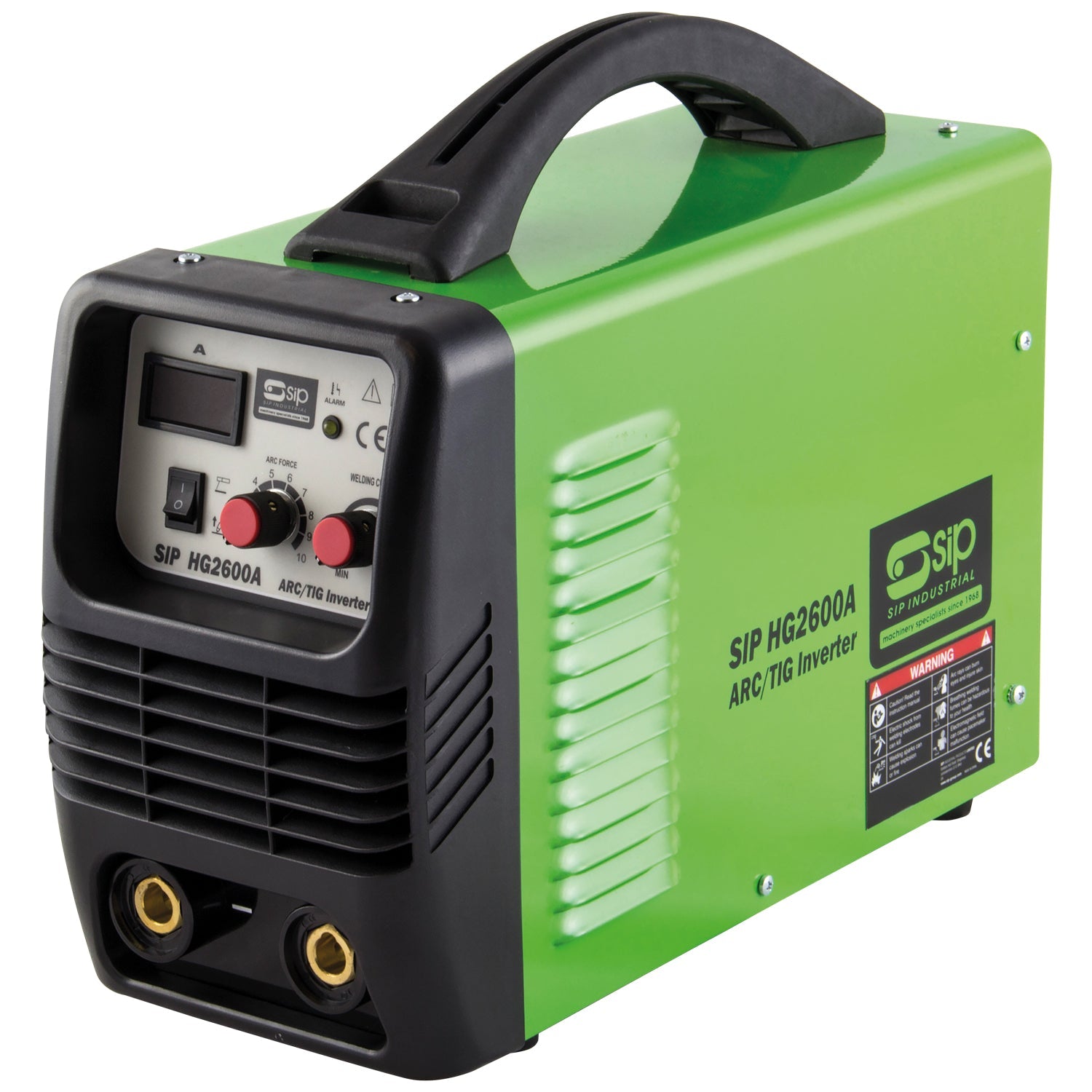

SIP HG2600DA ARC Inverter Welder

The SIP HG2600DA ARC Inverter Welder is a multi-functional inverter with a lightweight, compact design for portability, and is generator-friendly meaning it is ideal for a variety of applications and environments without mains electricity supplies.

Supplied with electrode holder and cable, plus Earth cable and clamp accessories.

• Ø 1.6mm to Ø 5mm electrode diameter
• 30A to 250A output current; 250A @ 60% duty cycle
• Lightweight and compact design for simple portability
• Lift-TIG start function and anti-stick circuitry
• Fitted with a reliable Voltage Reduction Device (VRD)
• Generator-friendly for suitability in all environments
• Thermal overload protection for added safety
• Equipped with high-quality dinse sockets
• SIP 2-Year Standard Silver Warranty - ITEM NO. 05732
Input Supply: 230v (22A)
Output Current: 30A - 250A
Output Voltage: 21.2v - 30v (ARC) / 11.2v - 20v (TIG)
Duty Cycle: 20°C: 250A @ 60% / 40°C: 250A @ 20%
Electrode Diameter: Ø 1.6mm - 5mm
Welding Thickness: 1.5mm - 10.5mm
Open Circuit Voltage: 80v
Power Factor: 0.73
Efficiency Level: 80%
Protection Level: IP21S
Insulation Class: Class H
