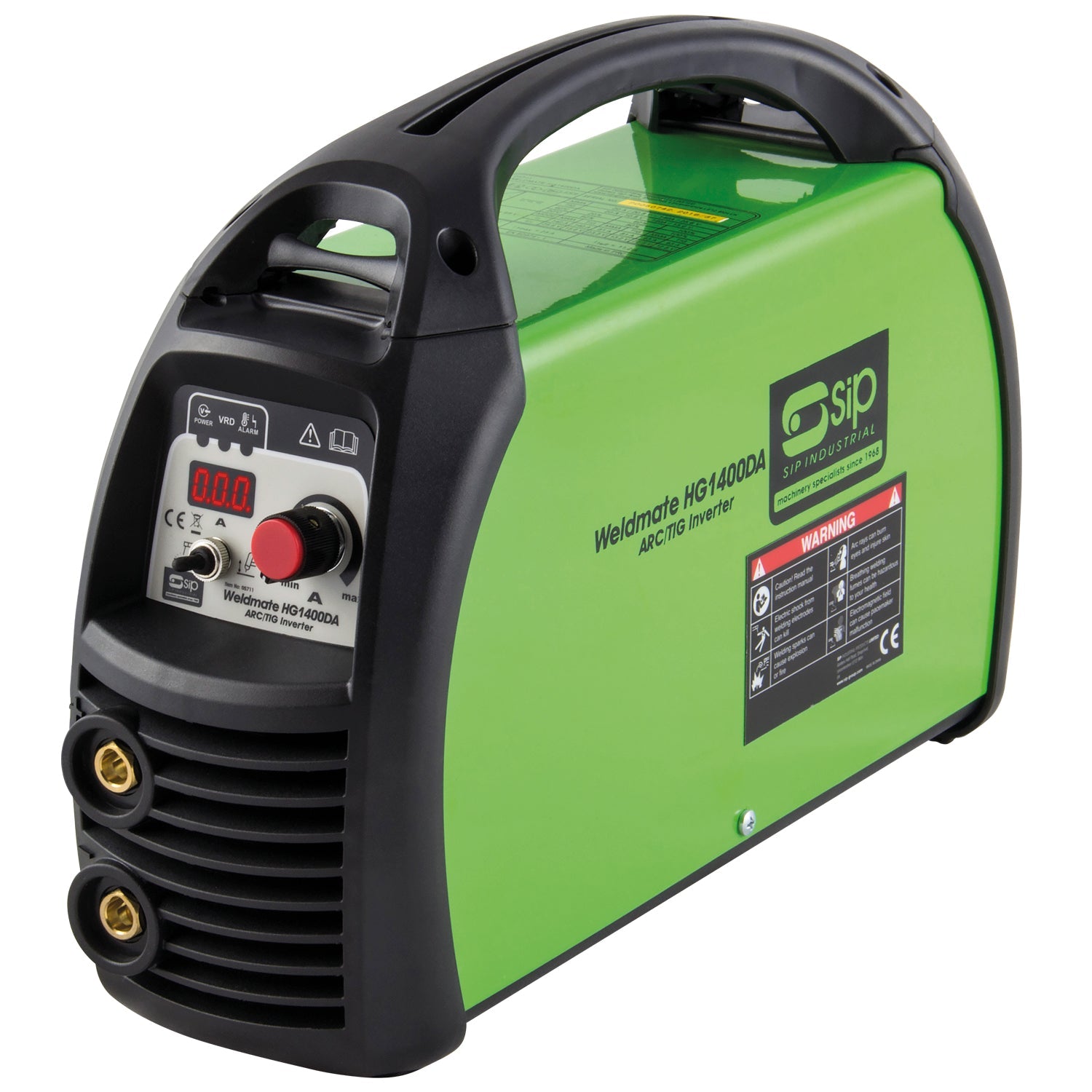

SIP HG1401DA ARC Inverter Welder

The SIP HG1401DA ARC Inverter Welder is a powerful multi-functional inverter with a lightweight, compact design for portability, and is generator-friendly meaning it is ideal for a variety of applications and environments without mains electricity supplies.

Supplied with electrode holder and cable, plus Earth cable and clamp accessories.

• Ø 1.6mm to Ø 3.2mm electrode diameter
• 20A to 140A output current; 140A @ 60% duty cycle
• Lightweight and compact design for simple portability
• Lift-TIG start function and anti-stick circuitry
• Fitted with a reliable Voltage Reduction Device (VRD)
• Generator-friendly for suitability in all environments
• Thermal overload protection for added safety
• Equipped with high-quality dinse sockets
• SIP 2-Year Standard Silver Warranty - ITEM NO. 05711
Input Supply: 230v (13A)
Output Current: 20A - 140A
Output Voltage: 20.8v - 25.6v (ARC) / 10.8v - 15.6v (TIG)
Duty Cycle: 20°C: 140A @ 60% / 40°C: 140A @ 20%
Electrode Diameter: Ø 1.6mm - 3.2mm
Welding Thickness: 1.5mm - 7mm
Open Circuit Voltage: 69v
Power Factor: 0.75
Efficiency Level: 85%
Protection Level: IP21S
Insulation Class: Class H
