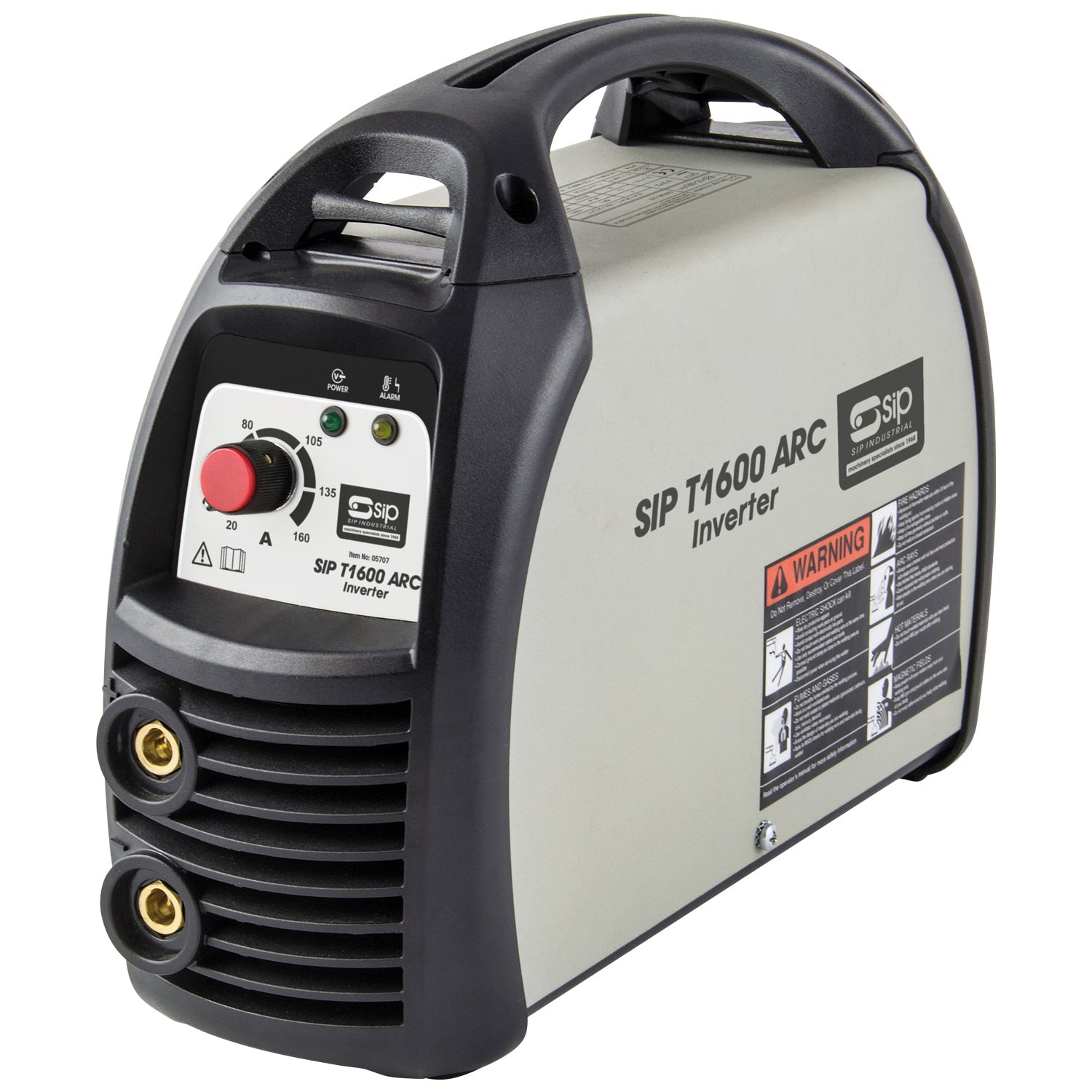

SIP T1600 ARC/TIG Inverter Welder

The SIP T1600 ARC/TIG Inverter Welder is a powerful multi-functional inverter with a lightweight, compact design for portability, and is generator-friendly meaning it is ideal for a variety of applications and environments without mains electricity supplies.

Supplied with electrode holder and cable, plus Earth cable and clamp accessories.

• Ø 1.6mm to Ø 4mm electrode diameter
• 20A to 160A output current; 160A @ 20% duty cycle
• Lightweight and compact design for simple portability
• Scratch-TIG start function and anti-stick circuitry
• On-demand cooling for longer runtimes and performance
• Generator-friendly for suitability in all environments
• Thermal overload protection for added safety
• Equipped with high-quality dinse sockets
• SIP 2-Year Standard Silver Warranty - ITEM NO. 05707
Input Supply: 230v (16A)
Output Current: 20A - 160A
Output Voltage: 20.8v - 26.4v
Duty Cycle: 160A @ 20% / 92A @ 60% / 71A @ 100%
Electrode Diameter: Ø 1.6mm - 4mm
Welding Thickness: 1.5mm - 8mm
Open Circuit Voltage: 68v
Power Factor: 0.65
Efficiency Level: 85%
Protection Level: IP21S
Insulation Class: Class H
