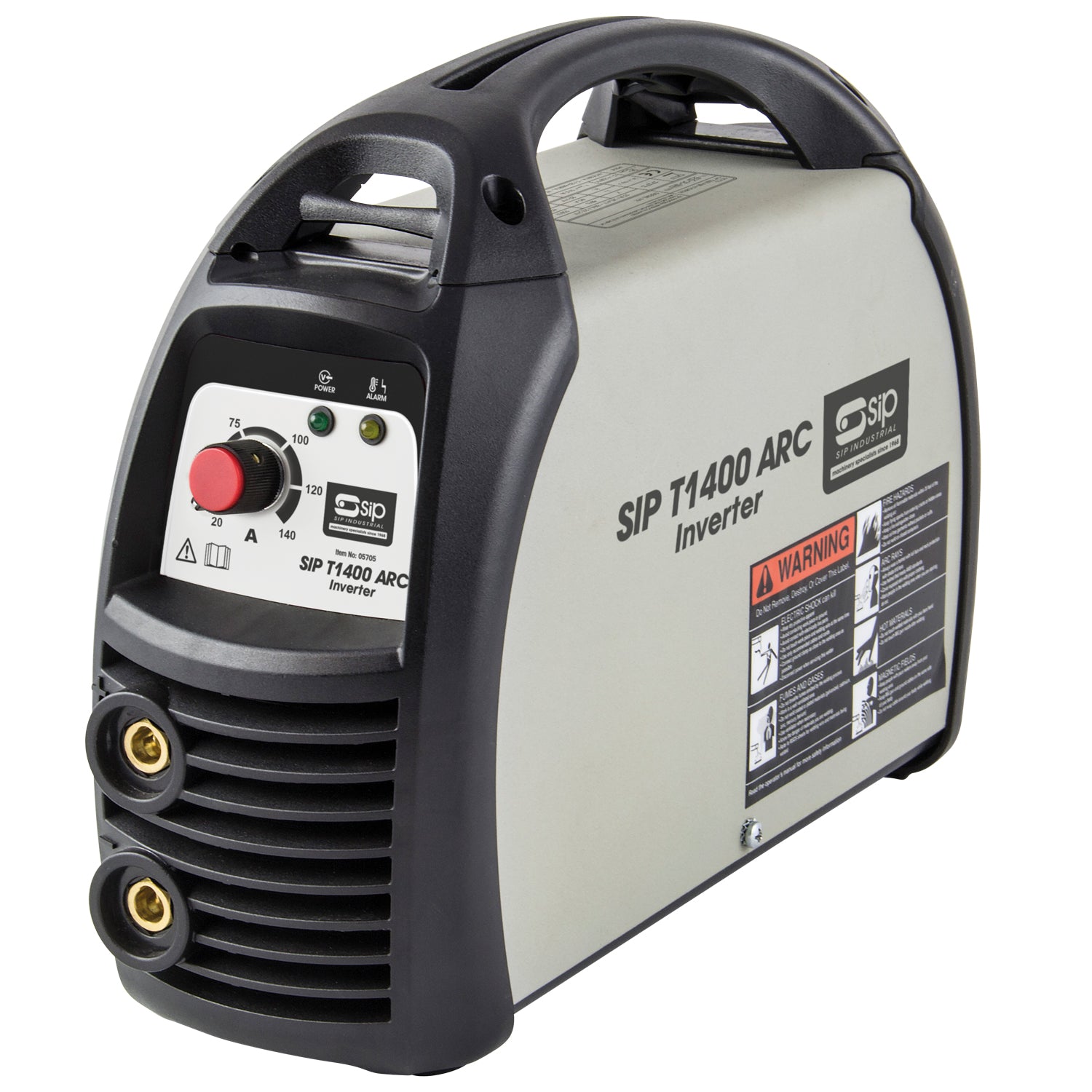

SIP T1400 ARC/TIG Inverter Welder

The SIP T1400 ARC/TIG Inverter Welder is a powerful multi-functional inverter with a lightweight, compact design for portability, and is generator-friendly meaning it is ideal for a variety of applications and environments without mains electricity supplies.

Supplied with electrode holder and cable, plus Earth cable and clamp accessories.

• Ø 1.6mm to Ø 3.2mm electrode diameter
• 20A to 140A output current; 140A @ 20% duty cycle
• Lightweight and compact design for simple portability
• Scratch-TIG start function and anti-stick circuitry
• On-demand cooling for longer runtimes and performance
• Generator-friendly for suitability in all environments
• Thermal overload protection for added safety
• Equipped with high-quality dinse sockets
• SIP 2-Year Standard Silver Warranty - ITEM NO. 05705
Input Supply: 230v (13A)
Output Current: 20A - 140A
Output Voltage: 20.8v - 25.6v
Duty Cycle: 140A @ 20% / 81A @ 60% / 63A @ 100%
Electrode Diameter: Ø 1.6mm - 3.2mm
Welding Thickness: 1.5mm - 7mm
Open Circuit Voltage: 68v
Power Factor: 0.65
Efficiency Level: 85%
Protection Level: IP21S
Insulation Class: Class H
