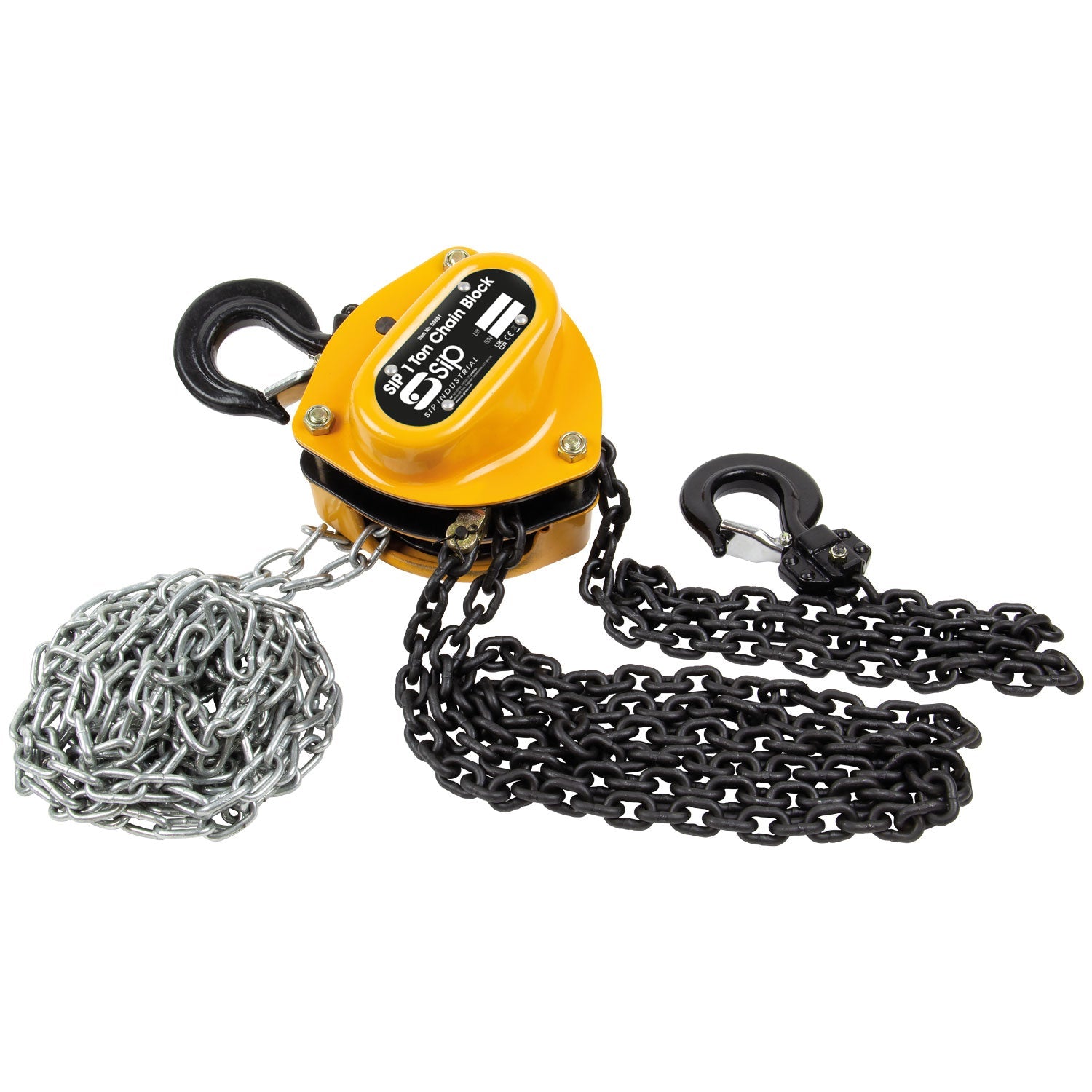

SIP 1 TONNE Gantry Crane Chain Block

The SIP 1 TONNE Gantry Crane Chain Block is a heavy-duty assembly designed to work alongside the SIP 1 TONNE Mobile Gantry Crane Frame and SIP Beam Trolley to provide a complete lifting and support solution in garages and workshops.

This chain block assembly is suitable for a variety of professional-grade manual lifting demands, utilising a robust mechanism with hardened shaft and gears to provide minimal resistance and low operator effort.

It is perfect for use in a wide variety of garage and workshop applications including automotive maintenance and repair, servicing, material handling and manufacturing.

• 1 TONNE safe workload for versatile performance
• ? 40mm hook capacity and ? 6mm load chain
• Heavy-duty chain block assembly with manual lift
• Low resistance system for added user ease-of-use
• Robust mechanism with hardened shaft and gears
• Short headroom for quick and easy installation
• Reduced maintenance and servicing costs
• SIP 2-Year Standard Silver Warranty - ITEM NO. 03845
Suitable For: 03849
Safe Working Load: 1 TONNE
Block Headroom: 317mm
Load Chain Diameter: Ø 6mm
Max. Hook Capacity: Ø 40mm
Overall Block Depth: 158mm
Overall Block Width: 140mm
Standard Lift: 2.5mtr
