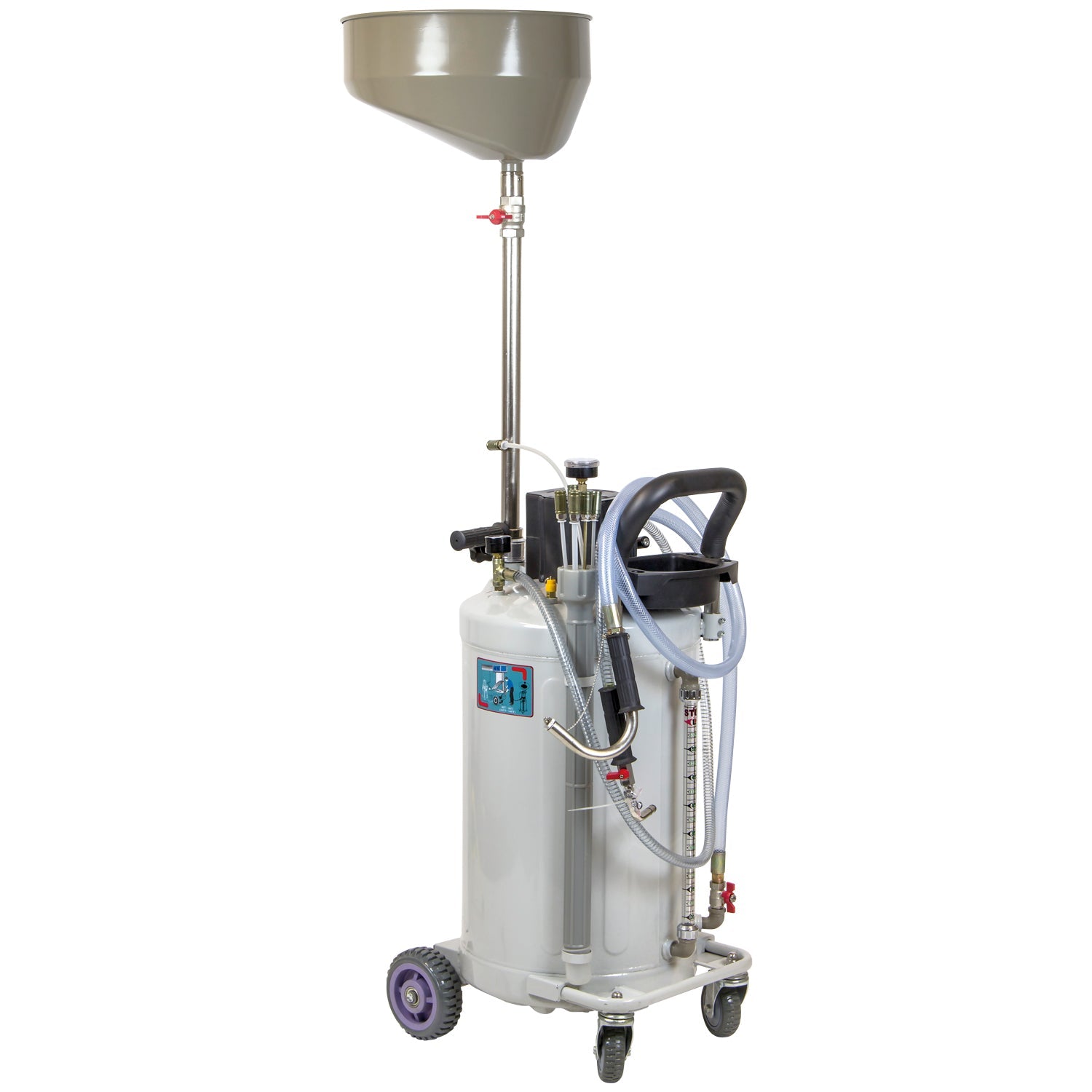

SIP 80ltr Suction Oil Drainer

The SIP 80ltr Suction Oil Drainer is designed to collect waste and excess engine oil, transmission fluid and more from engines, gearboxes or assemblies in maintenance or servicing applications in garage or workshop environments.

A large 20ltr collection tray allows easy emptying into the wheel and castor-mounted 80ltr collection tank from which the fluid can then be disposed of safely.

An adjustable height from 1190mm to 1810mm offers easy reach to a range of vehicles, while a mobile frame ensures easy positioning around the work area.

• Collects waste oil or fluids from vehicle components
• 80ltr heavy-duty steel collection tank and 20ltr tray
• Versatile 1190mm to 1810mm adjustable height range
• Wheel and castor-mounted for simple positioning
• 40°C to 60°C working temperature for engine oil
• Oil level indicator tube on the oil reservoir
• 6 suction tubes included
• SIP 2-Year Standard Silver Warranty - ITEM NO. 03711
Operation Type: SUCTION / GRAVITY
Collection Tank Capacity: 80ltr
Collection Tray Capacity: 20ltr
Chamber Capacity: N/A
Discharge Pressure: 10psi (0.7bar) - 15psi (1bar)
Extraction Pressure: 87psi (6bar) - 145psi (10bar)
Air Inlet: 1/4"
Working Temperature: 40°C - 60°C
Min. Adjustable Height: 1190mm
Max. Adjustable Height: 1810mm
Wheel Mounted: 2x wheels / 2x castors
