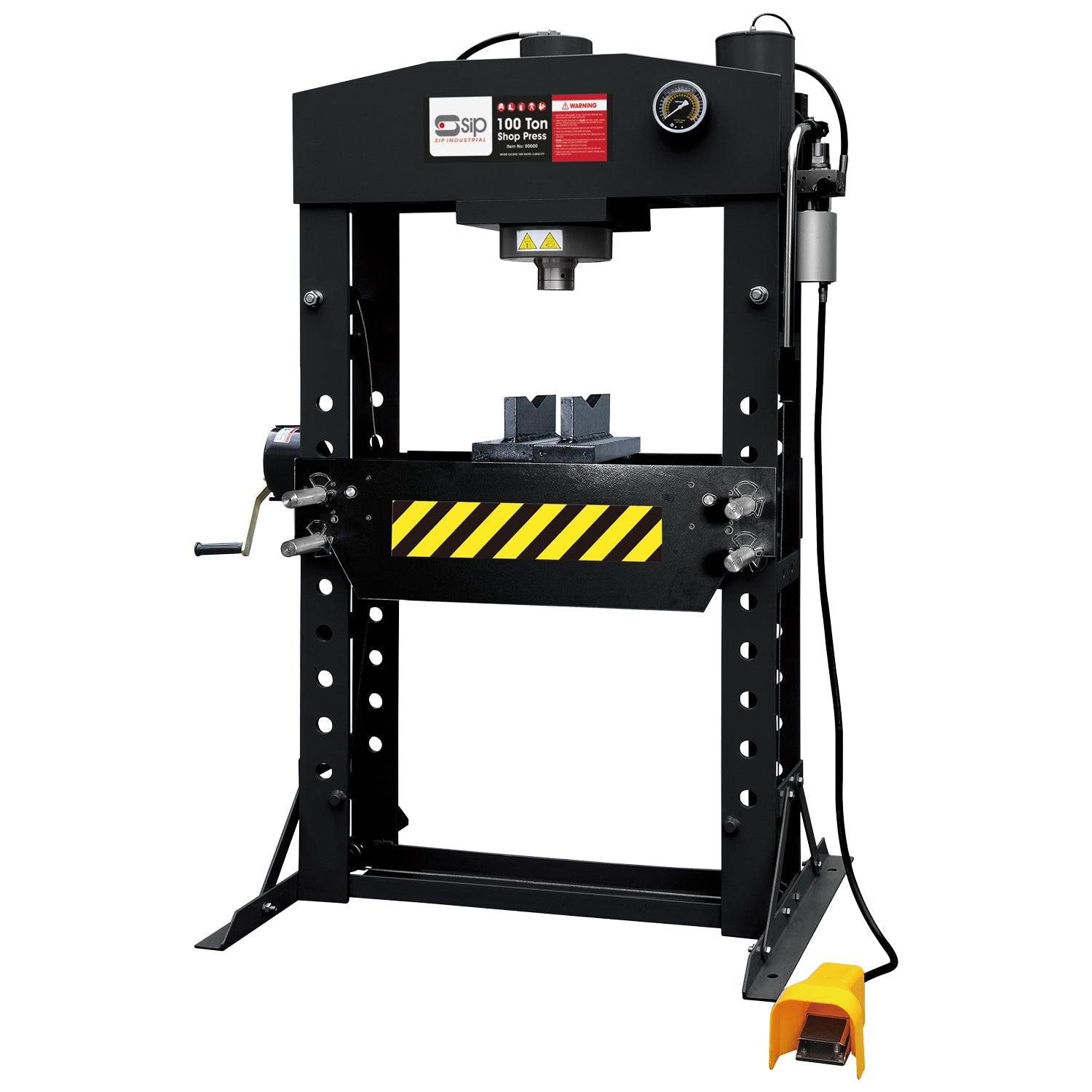

SIP 100 TON Shop Floor Press
SIP 100 TON Shop Floor Press
Prices may vary between branches.
The SIP 100 TON Shop Floor Press is perfect for a variety of applications in garage or workshop applications, offering pneumatically-assisted pressing performance within a robust and exceptionally durable frame, plus a fully adjustable workbed.
This press can be used for pressing bearings, bushings or sleeves, bending or shaping metal rods and bars, straightening bent metal, bonding and riveting, punching holes in sheets and plates, or forming sheets into various shapes. It is particularly well-suited for the removal and installation of bearings, wrist pins, universal joints and pulleys.
A glycerine-filled manometer helps protect the gauge and provides higher accuracy readings, plus durability against less-than-ideal conditions and corrosion.
• 100 TON floor-standing pneumatically-assisted press
• 93mm to 993mm work range and a 300mm ram stroke
• Heavy-duty steel frame for increased durability
• Fully adjustable workbed for improved versatility
• Suitable for pressing, bending, bonding and straightening
• Bearing, wrist pin, universal joint and pulley removal
• Glycerine-filled manometer for durability
• SIP 2-Year Standard Silver Warranty - ITEM NO. 03686
Press Capacity: 100 TON
Press Type: FLOOR
Press Operation: Pneumatic
Working Range: 93mm - 993mm
Max. Air Pressure: 108psi (7.5bar) - 123psi (8.5bar)
Air Inlet: 1/4" NPT
Ram Stroke: 300mm
Bed Width: 787mm
