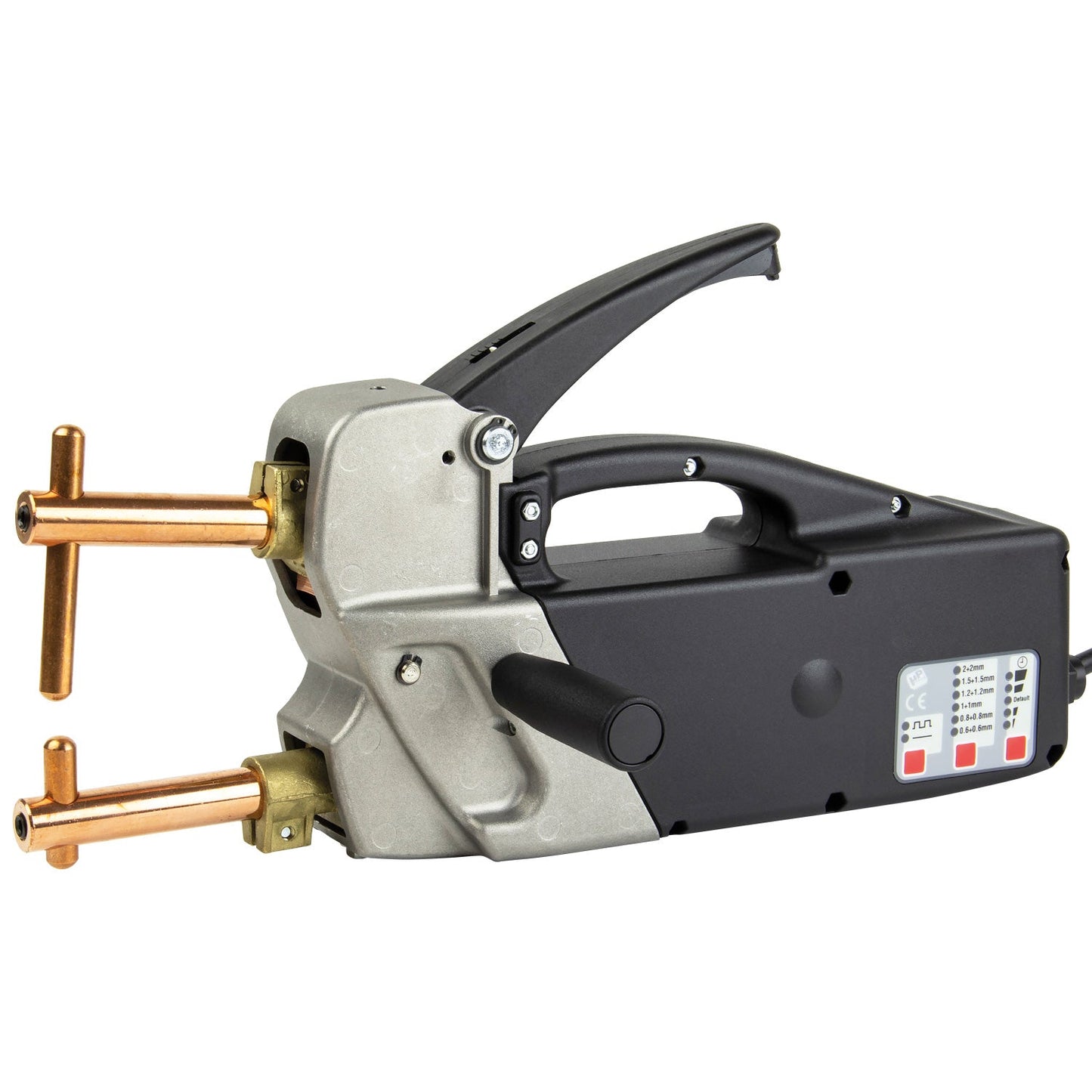

SIP Professional Spotweld 22E

The SIP Professional Spotweld 22E offers excellent versatility in a range of spot welding applications, particularly where access is limited thanks to its compact, lightweight, and handheld design housing a heavy-duty professional transformer.

Moreover, the Spotweld 22E is supplied with high-quality arms and electrodes.

• 6300A max. welding current via weld timer operation
• 120mm arm; 100mm (top) / 50mm (bottom) electrode length
• 2+2mm (mild steel) and 6+6mm Ø max. welding capacity
• Easy electronic control for welding time and welding power
• Automatic welding current time control depending on thickness
• Microprocessor-controlled; fuzzy logic for simple operation
• Heavy-duty transformer for professional-grade use
• Fitted with manual welding current time control
• Fully adjustable tip pressure for high versatility
• Ideal for automotive and light sheet metal tasks
• Integrated thermal protection for added safety
• SIP 2-Year Standard Silver Warranty
• Manufactured in Italy - ITEM NO. 25288
Input Supply: 230v (32A)
Max. Input Power: 2.3kW
Max. Welding Power: 6300A
Open Circuit Voltage: 2.5v
Mild Steel Capacity: 2+2mm (flat) / Ø 6+6mm
Stainless Steel Capacity: 3+3mm (flat) / 12+12mm (bar)
Electrode Length: 100mm (top) / 50mm (bottom)
Arm Pressure: Adjustable 40kg - 120kg
Arm Length: 120mm
