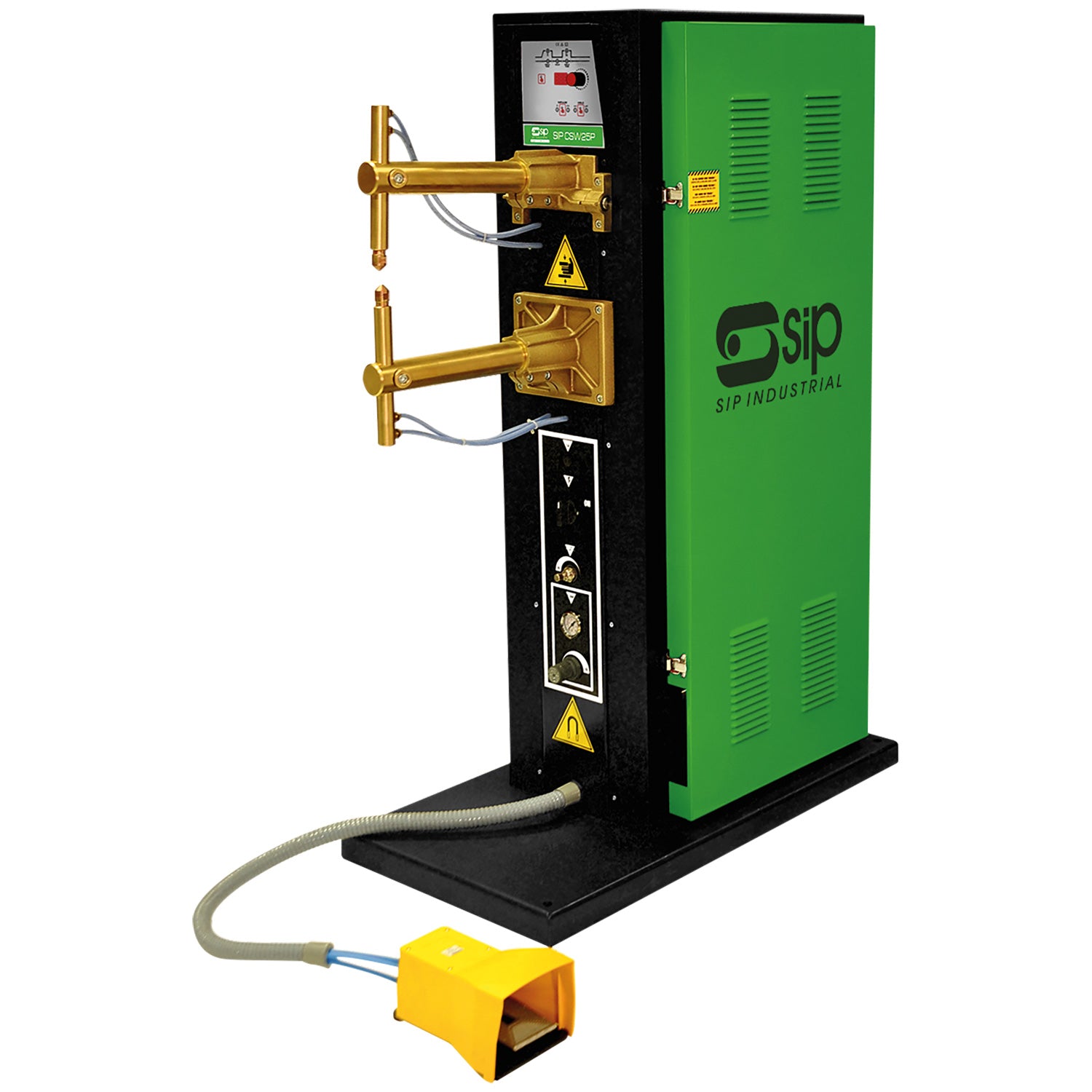

SIP CSW25P Pneumatic Column Spot Welder

SIP CSW25P Pneumatic Column Spot Welder

Prices may vary between branches.

Regular price £4,604.99
Regular price Sale price £4,604.99
Sale Sold out
VAT included.

The SIP CSW25P Pneumatic Column Spot Welder offers easy spot welding in a variety of demanding applications, utilising single or double spot welding modes for use on oxidised or coated steels, and a 2-stage pneumatic foot pedal for precise positioning.

• 50kVA max. / 25kVA @ 50% welding output
• 340mm to 480mm standard welding arm length
• 5+5mm (mild steel plate) / 20+20mm (bar) weld capacity
• Single or double spot welding modes perfect for oxidised or coated steels
• Adjustable air regulator with dampener; controls air pressure and descent speed
• Digital display for monitoring and controlling welding current and welding time
• 2-stage pneumatic foot pedal; precise work positioning and easy operation
• Fitted with high-quality watercooling hoses
• SIP 2-Year Standard Silver Warranty
• Manufactured in the EU - ITEM NO. 25113
Input Supply: 400v (50A) 1-PHASE
Max. Welding Power: 50kVA
Duty Cycle: 25kVA @ 50%
Mild Steel Capacity: 5+5mm (flat) / 20+20mm (bar)
Stainless Steel Capacity: 3+3mm (flat) / 12+12mm (bar)
No-Load Voltage: 1.4v
Short Circuit Current: 13.8KA
Max. Air Pressure: 70psi (4.8bar)
Water Flow Rate: 4ltr/min
Max. Electrode Force: 204kgF @ 340mm / 140kgF @ 450mm
Distance Between Arms: 200mm (standard) / 320mm (optional)
Arm Length: 340mm to 480mm (standard)
200mm to 1000mm (optional)
Electrode Throat Size: 100mm
Electrode Holder Diameter: Ø 25mm
Electrode Diameter: Ø 20mm
Arm Diameter: Ø 45mm
Noise Level: 70dB(A)
